Shell Ejection Rubber Band Gun Government type Ver.2（English version）

GovernEXv2E.PDF

Blowback Rubber band Gun with Ejection Function Government type Ver.2（English version）

■ It is a set of production manuals for “Blowback Rubber band Gun with Ejection Function Ver.2”.
・　The manual is written for those who have experience in making the "blowback rubber band series".
・　For production, a jigsaw, an electric drill with a stand, and an end mill cutter will make the process easier.

■　New features.
・　The frame is integrated, and the slide and the frame can be separated with single touch.

■ Product details [Important]
・　First, rewrite the extension of the downloaded "GovernEXv2E.PDF" to "GovernEXv2E.rar".
・　When you unzip the "GovernEX v2E.rar" file, you will find "Read Me First.pdf", " GovernEX v2 Manual.pdf", and " GovernEX v2 Drawing.pdf".
・ First, please read " Read Me First.pdf".

・ Production manual A4：22 pages, Drawings A4:4 sheets
A full-scale drawing is pasted on a wooden board, parts are cut out, and the parts are processed and assembled according to the production manual on the PC screen.

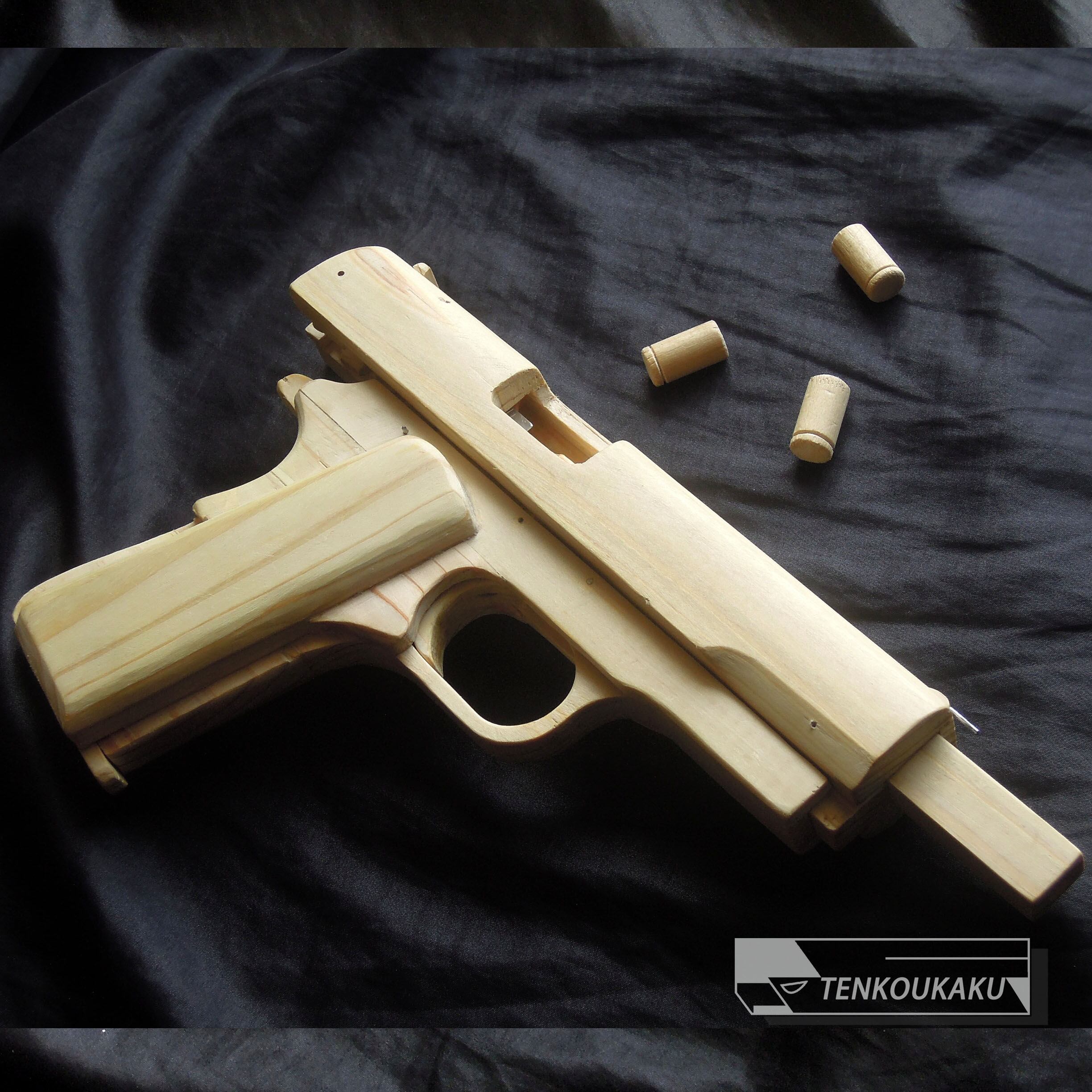

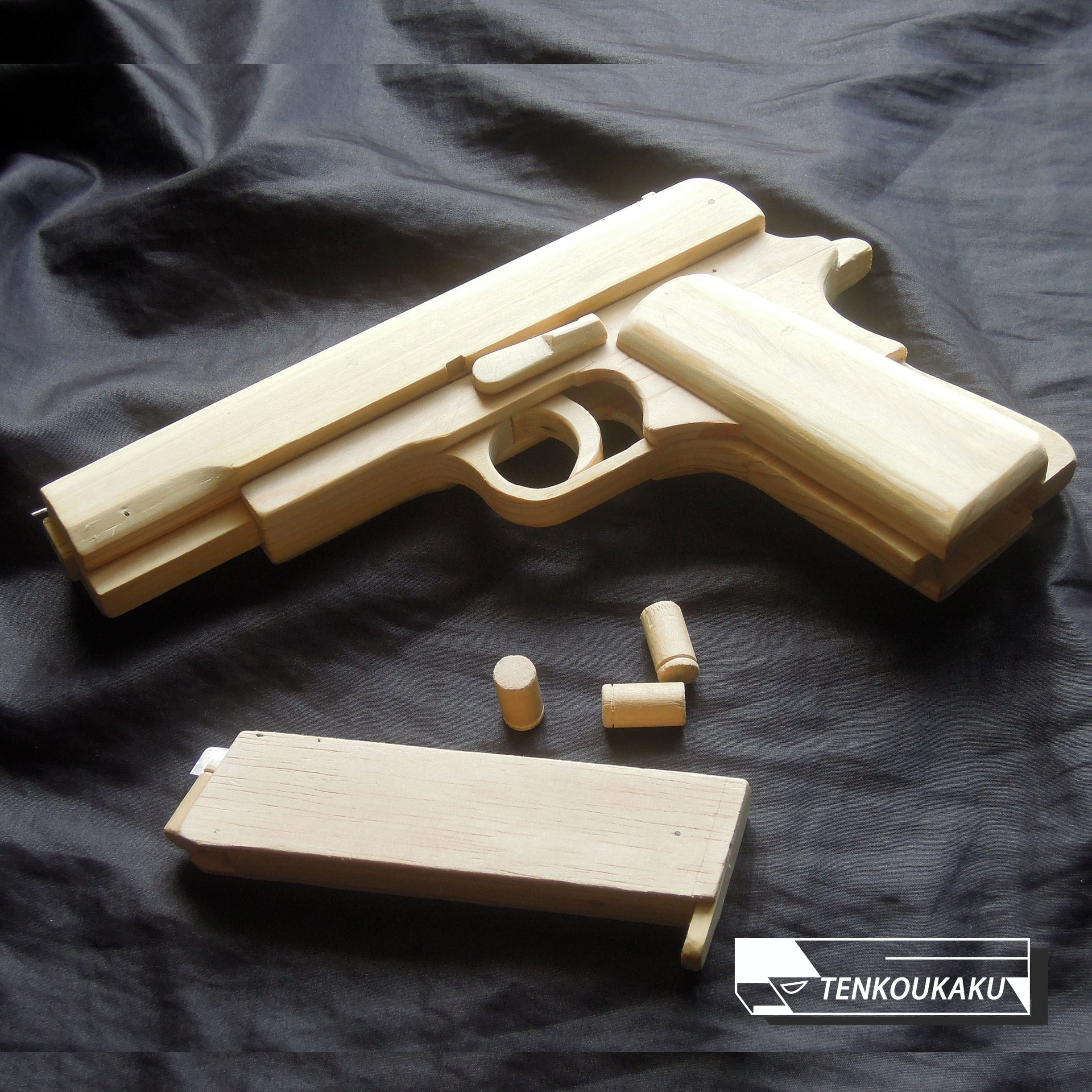

■ The photo is an image of the manual and production example.
・ Please see also YouTube's "Shell Ejection Rubber Band Gun - Government Type Ver.2" for production. https://youtu.be/MWha0bMFfzI

■ About copyright
All rights reserved.
Copyright holder approval is required for production and sale.
Please contact tenkoukaku@gmail.com for copyright.
