Blowback Rubber Band Machine Gun with Ejection Function・micro UZI type（English version）

MicroUZI-E.PDF

■This product is a PDF data of the production manual of the Blowback Rubber Band Machine Gun with Ejection Function.

・ This work uses a structure that is a further development of the internal mechanism of the "Blowback Rubber Band Machine Gun with Ejection Function・Borchardt Type".

・ This manual is written for those who have experience in making "Blowback rubber band gun series".

■ Product content [Important]
First, change the extension of the downloaded "MicroUZI-E.PDF" and rewrite it as "MicroUZI-E.rar".

・When you unzip the "MicroUZI-E.rar" file, "Read Me First.docx", "MicroUZI Manual.pdf", "MicroUZI Drawing.pdf" are included.
To open the pdf file, you need the special password described in " Read Me First.docx".

・ Production manual A4 page 18, Drawings A4　6 sheets.

・ Stick a full-scale drawing on the plate, cut out the parts, and process it while reading the production manual on the PC screen like an electronic book.

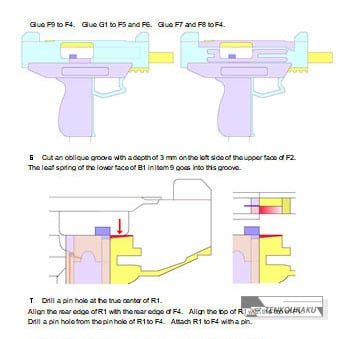

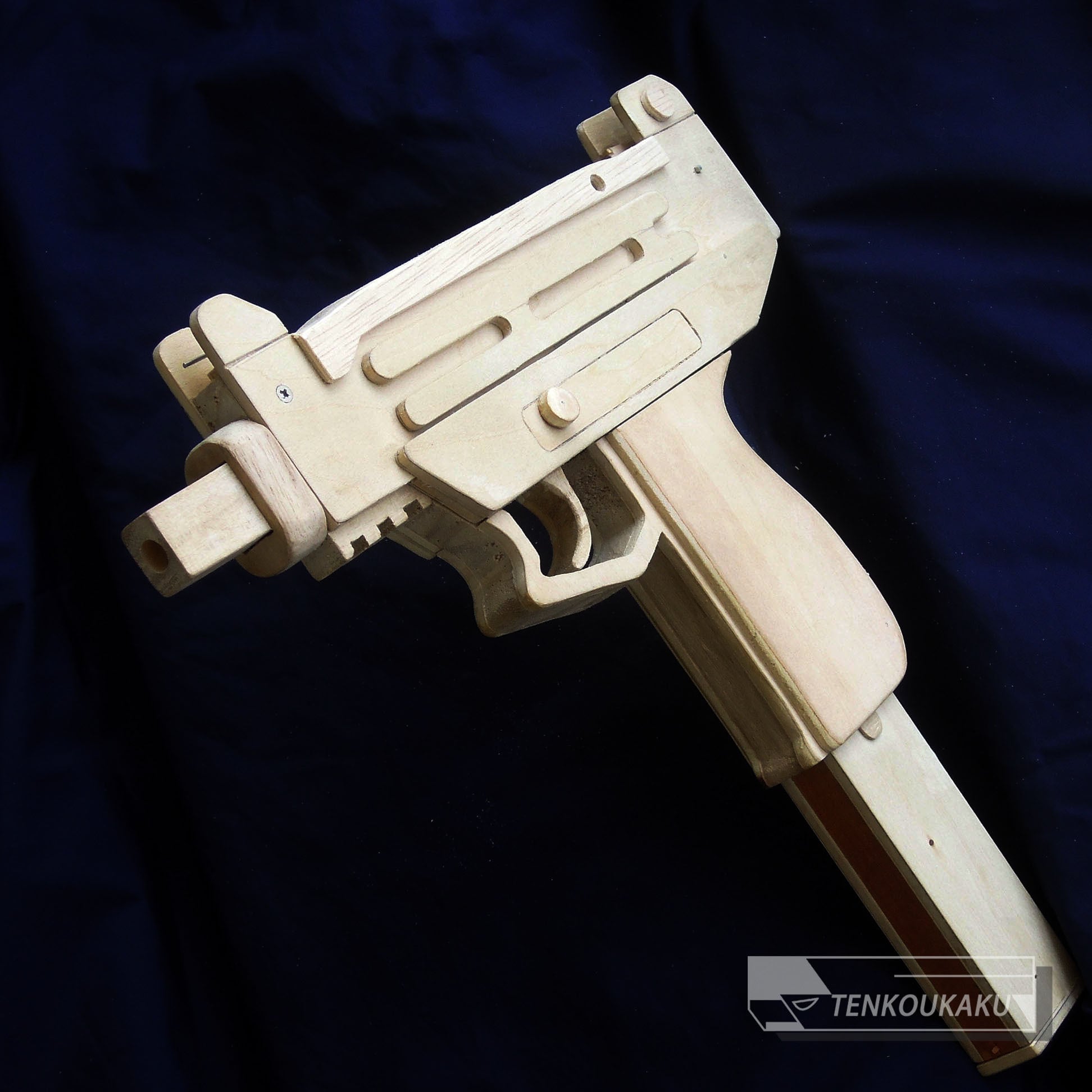

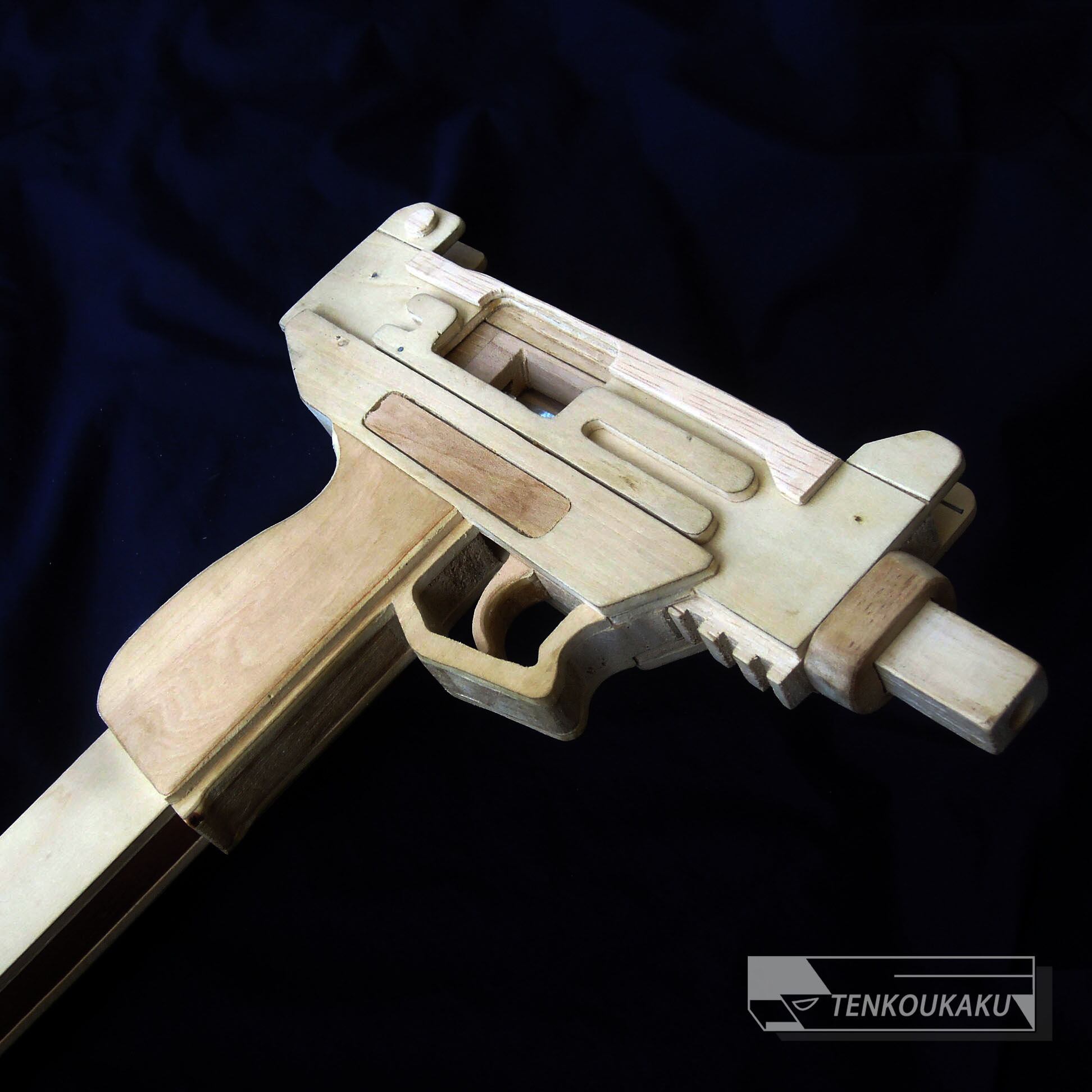

■ The photograph is an image of a manual and a production example.
・ Please refer to " Rubber Band Machine Gun ー Mechanism" on YouTube for production. 　https://youtu.be/Z0go_U6Rjc0
